Fiber Optics Installation & Splicing

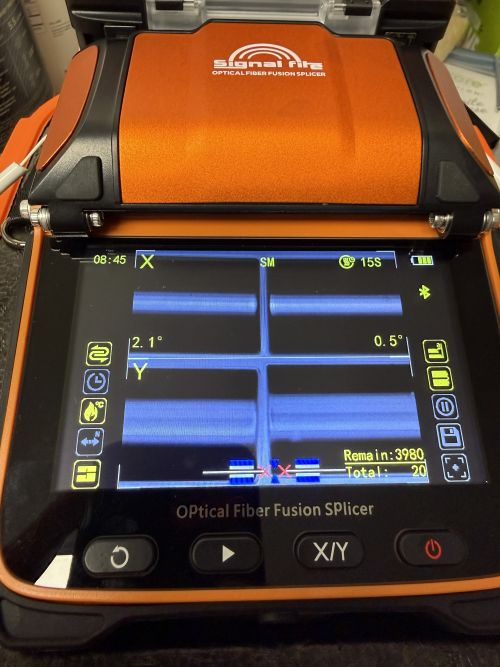

We provide fusion splicing installation or repairs in the Tucson area. Fusion and mechanical splicing, indoor/outdoor installation, single mode and multimode. Tucson area.

Fiber optic signal measurements are crucial for ensuring the performance, quality, and integrity of a fiber optic network. These tests can be performed in the Tucson and surrounding areas. These tests typically focus on: Optical Power and Loss Test — determining the amount of light signal lost between two points. Link Characterization Tests — typically done with an Optical Time-Domain Reflectometer (OTDR), which acts like radar for the fiber. It injects a pulse of light and measures the reflected and backscattered light over time to map the link.

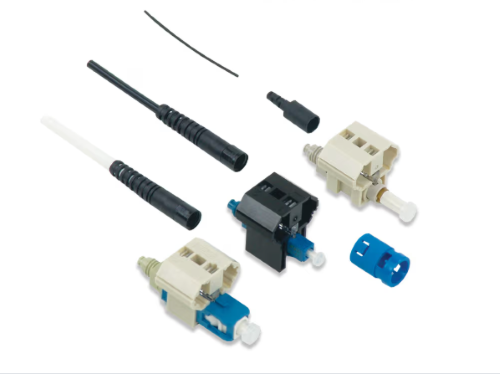

Mechanical splicing provides a quick and cost-effective alternative to fusion splicing for temporary or field repairs. Our field services are primarily provided in Tucson and throughout Southern Arizona. These splices use precision alignment mechanisms and index-matching gel to minimize light loss between fiber ends. While mechanical splices typically have slightly higher insertion loss (0.2–0.5 dB) compared to fusion splices, they require no power source and can be completed in minutes, making them ideal for emergency repairs and temporary connections.

Outdoor fiber optic installations must withstand harsh environmental conditions including intense Tucson UV exposure and Arizona temperature extremes, and moisture to protect from Tucson monsoon storms. These cables feature ruggedized jackets, often with gel-filled or water-blocking materials to prevent water ingress. Outdoor cables are typically installed in buried conduit, attached to utility poles, or placed in underground vaults. Proper installation techniques ensure protection from rodents, construction activity, and natural elements.

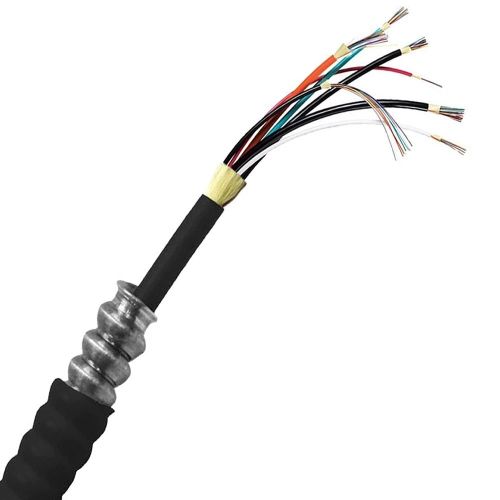

Direct burial fiber optic cables are specifically designed to be installed directly in the ground without conduit protection. These cables feature heavy-duty armor, moisture-blocking materials, and are constructed to resist crushing, moisture penetration, and chemical exposure. Installation requires proper trenching depth (typically 24–36 inches), careful handling to maintain minimum bend radius, and protection at transition points. This method is cost-effective for long-distance runs and rural installations.

Aerial fiber optic installations often utilize existing utility pole infrastructure to deploy cables above ground. These installations require specialized hardware including messenger wires, lashing equipment, and proper tensioning to prevent sag and damage. For shorter aerial installations, a simple messenger type is usually all that is needed. Aerial cables must be designed to withstand wind loading, ice accumulation, and temperature variations. Proper clearance from power lines and adherence to local utility regulations are critical for safe and compliant installations.

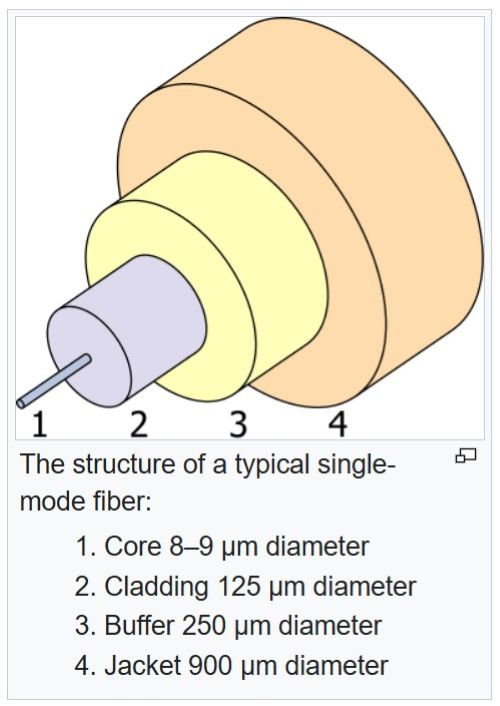

Historically, the rule was simple: multimode (MM) for short distances—inside buildings—and singlemode (SM) for long distances, such as between buildings or across cities. For Tucson and Southern Arizona facilities, that distinction still matters for backbone and outside-plant runs, but the picture has changed.

In recent years it has become increasingly common to use singlemode fiber in places where multimode could technically do the job. Many modern data centers and enterprise backbones, including in Arizona, are now singlemode-only. Here’s why the shift is happening and how it can affect your next installation in Tucson or elsewhere in the state.

Future-proofing (bandwidth limits): Multimode fiber has a modal dispersion limit. As speeds increase from 10G to 40G to 100G and beyond, the distance multimode can cover drops. OM4 multimode can handle 100G, but only to about 100 meters. Singlemode (OS2) can handle 100G and higher for 10 km or more. Installing singlemode now avoids having to rip and replace cable when the next generation of networking hardware arrives.

The narrowing cost gap: Singlemode cable was historically cheap, but the transceivers (optics/SFPs) were expensive because they required precise lasers; multimode used cheaper LEDs or VCSELs. Today, singlemode transceiver prices have dropped. SM optics are still slightly more expensive than MM, but the difference is often negligible compared with the total cost of labor and installation—a practical consideration for projects across Tucson and Arizona.

Simplified maintenance: Using one type of fiber across a campus or facility simplifies operations. You only need to stock one type of patch cord, technicians don’t have to worry about mixing OM3 and OM4, and testing and troubleshooting are standardized.

For new or upgraded fiber in Tucson and Arizona, choosing singlemode often aligns with long-term reliability and future speeds.

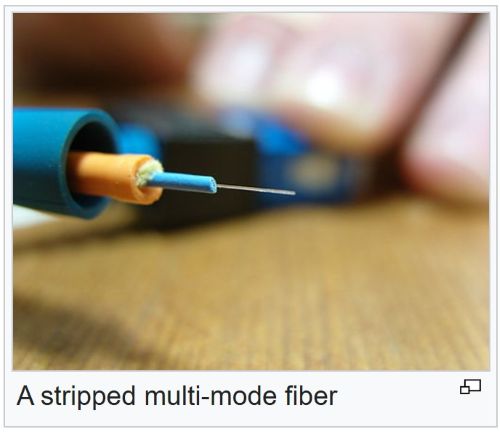

Multimode fiber has a larger core diameter (50 or 62.5 microns) that allows multiple light modes to travel simultaneously. While this creates modal dispersion that limits transmission distance, multimode fiber is more cost-effective and easier to work with for short-range applications. It's commonly used in local area networks (LANs), data centers, and campus environments where distances are typically under 2 kilometers. Modern OM3 and OM4 multimode fibers support 10 Gbps and 40 Gbps over short distances.

The answer is a definitive yes, but with a very important asterisk: it's the equipment, not the cable, that makes it cheaper. For short distances—typically under 150–300 meters (like within a single server room or between adjacent racks)—multimode (MM) usually offers the lowest total cost of ownership.

Why multimode is cheaper for short runs: The cost efficiency of multimode isn't found in the glass itself (singlemode cable is actually cheaper to manufacture); it's found in the transceivers (SFPs) at each end. Multimode uses VCSELs (Vertical-Cavity Surface-Emitting Lasers)—essentially high-end LEDs that are inexpensive to produce and have lower power requirements. Because the core of multimode fiber is wide (50 µm), the "target" for the laser is large, which allows for lower-precision (and thus cheaper) components inside the SFP. MM transceivers generally draw less power than singlemode lasers, which adds up to significant utility savings in a large-scale data center environment.

As the distance increases, the efficiency of multimode disappears. The table below summarizes how costs compare for short-distance runs.

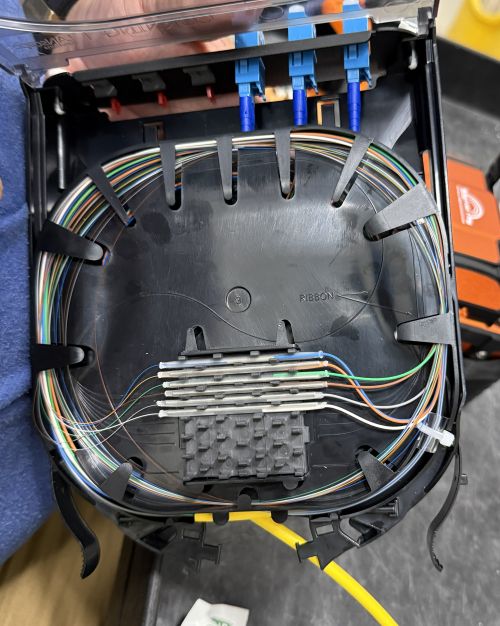

Splice closures provide environmental protection for fiber optic splices in outdoor and underground installations. These enclosures are designed to be watertight, dustproof, and resistant to temperature extremes. These enclosures can also be used for emergency fiber optic splice repairs (underground or above ground). Modern splice closures feature modular designs that accommodate various cable types and splice counts, with internal organization systems for proper fiber management. Proper installation and sealing of splice closures is critical to prevent moisture ingress and ensure long-term reliability of the fiber network.
